Acknowledgements

• {list here sources of all reused/adapted ideas, code, documentation, and third-party libraries – include links to the original source as well}

Setting up, getting started

Refer to the guide Setting up and getting started.

Design

Tip: The .puml files used to create diagrams are in this document docs/diagrams folder. Refer to the PlantUML Tutorial at se-edu/guides to learn how to create and edit diagrams.

Architecture

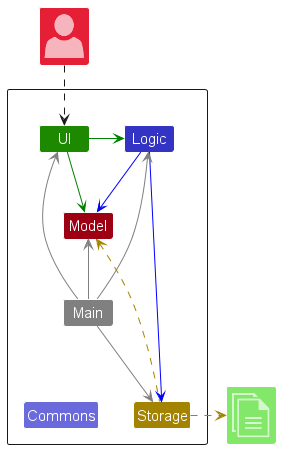

The Architecture Diagram given above explains the high-level design of the App.

Given below is a quick overview of main components and how they interact with each other.

Main components of the architecture

Main (consisting of classes Main and MainApp) is in charge of the app launch and shut down.

• At app launch, it initializes the other components in the correct sequence, and connects them up with each other.
• At shut down, it shuts down the other components and invokes cleanup methods where necessary.

The bulk of the app’s work is done by the following four components:

• UI: The UI of the App.
• Logic: The command executor.
• Model: Holds the data of the App in memory.
• Storage: Reads data from, and writes data to, the hard disk.

Commons represents a collection of classes used by multiple other components.

How the architecture components interact with each other

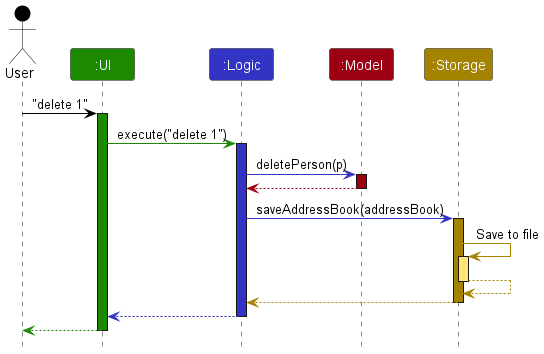

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command delete 1.

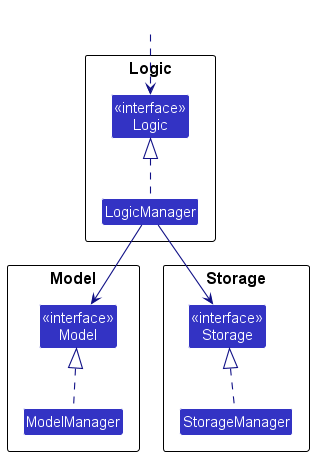

Each of the four main components (also shown in the diagram above),

• defines its API in an interface with the same name as the Component.
• implements its functionality using a concrete {Component Name}Manager class (which follows the corresponding API interface mentioned in the previous point.

For example, the Logic component defines its API in the Logic.java interface and implements its functionality using the LogicManager.java class which follows the Logic interface. Other components interact with a given component through its interface rather than the concrete class (reason: to prevent outside component’s being coupled to the implementation of a component), as illustrated in the (partial) class diagram below.

The sections below give more details of each component.

UI component

The API of this component is specified in Ui.java

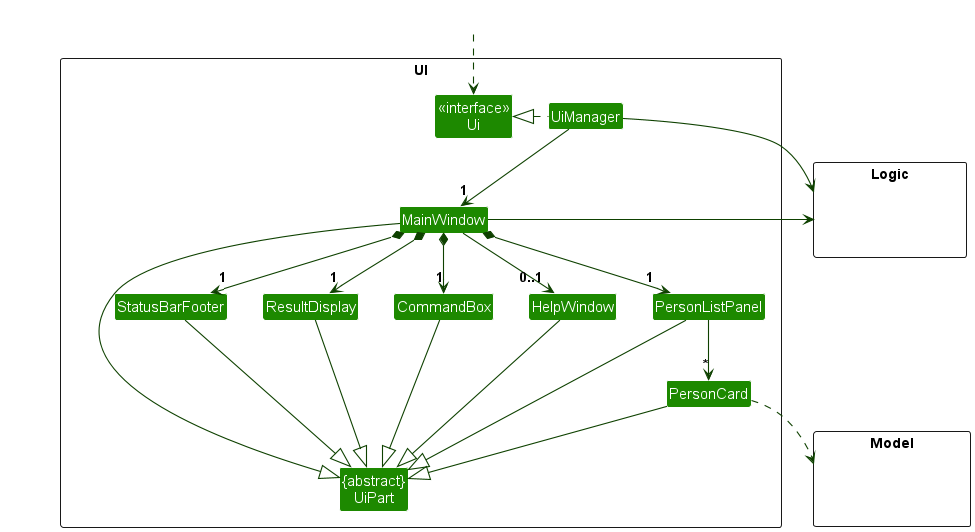

The UI consists of a MainWindow that is made up of parts e.g.CommandBox, ResultDisplay, LocationListPanel, StatusBarFooter etc. All these, including the MainWindow, inherit from the abstract UiPart class which captures the commonalities between classes that represent parts of the visible GUI.

The UI component uses the JavaFx UI framework. The layout of these UI parts are defined in matching .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml

The UI component,

• executes user commands using the Logic component.
• listens for changes to Model data so that the UI can be updated with the modified data.
• keeps a reference to the Logic component, because the UI relies on the Logic to execute commands.
• depends on some classes in the Model component, as it displays Location object residing in the Model.

Logic component

API : Logic.java

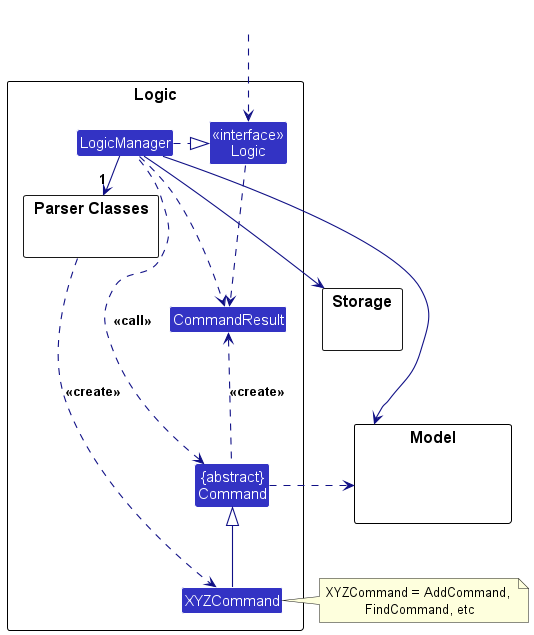

Here’s a (partial) class diagram of the Logic component:

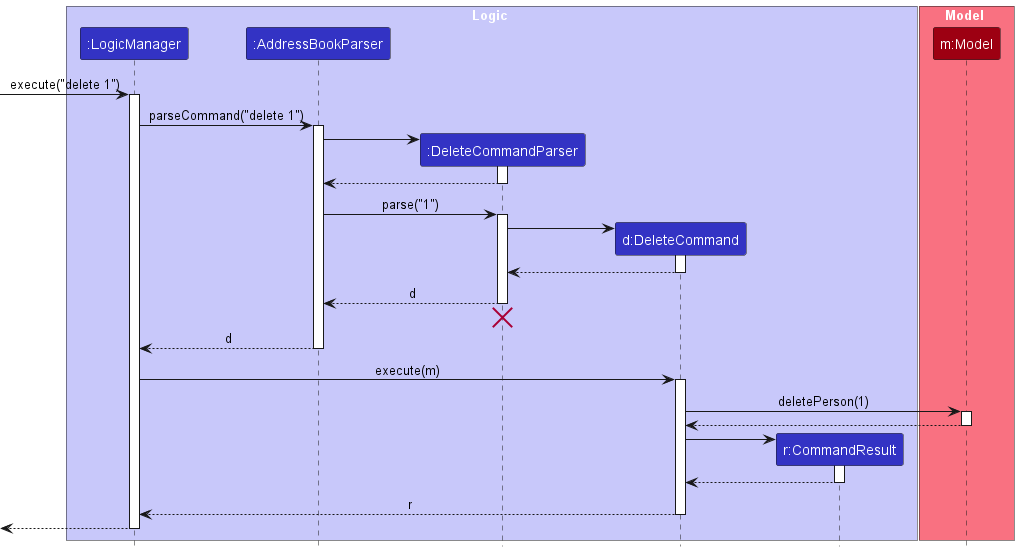

The sequence diagram below illustrates the interactions within the Logic component, taking execute("delete 1") API call as an example.

Note: The lifeline for DeleteCommandParser should end at the destroy marker (X) but due to a limitation of PlantUML, the lifeline continues till the end of diagram.

How the Logic component works:

1. When Logic is called upon to execute a command, it is passed to an AddressBookParser object which in turn creates a parser that matches the command (e.g., DeleteCommandParser) and uses it to parse the command.
2. This results in a Command object (more precisely, an object of one of its subclasses e.g., DeleteCommand) which is executed by the LogicManager.
3. The command can communicate with the Model when it is executed (e.g. to delete a location).
   Note that although this is shown as a single step in the diagram above (for simplicity), in the code it can take several interactions (between the command object and the Model) to achieve.
4. The result of the command execution is encapsulated as a CommandResult object which is returned back from Logic.

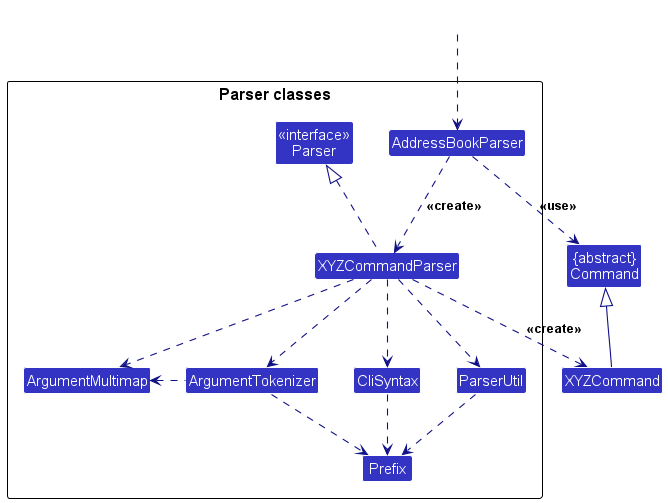

Here are the other classes in Logic (omitted from the class diagram above) that are used for parsing a user command:

How the parsing works:

• When called upon to parse a user command, the AddressBookParser class creates an XYZCommandParser (XYZ is a placeholder for the specific command name e.g., AddCommandParser) which uses the other classes shown above to parse the user command and create a XYZCommand object (e.g., AddCommand) which the AddressBookParser returns back as a Command object.
• All XYZCommandParser classes (e.g., AddCommandParser, DeleteCommandParser, …) inherit from the Parser interface so that they can be treated similarly where possible e.g, during testing.

Model component

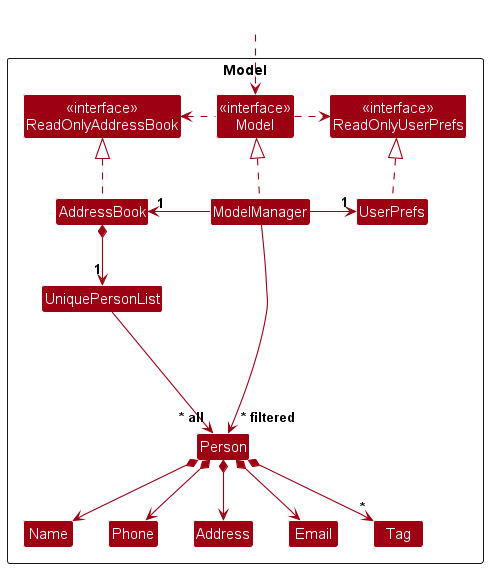

API : Model.java

The Model component,

• stores the address book data i.e., all Location objects (which are contained in a UniqueLocationList object).
• stores the currently ‘selected’ Location objects (e.g., results of a search query) as a separate filtered list which is exposed to outsiders as an unmodifiable ObservableList<Location> that can be ‘observed’ e.g. the UI can be bound to this list so that the UI automatically updates when the data in the list change.
• stores a UserPref object that represents the user’s preferences. This is exposed to the outside as a ReadOnlyUserPref objects.
• does not depend on any of the other three components (as the Model represents data entities of the domain, they should make sense on their own without depending on other components)

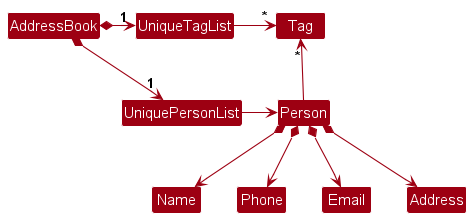

Note: An alternative (arguably, a more OOP) model is given below. It has a Tag list in the AddressBook, which Location references. This allows AddressBook to only require one Tag object per unique tag, instead of each Location needing their own Tag objects.

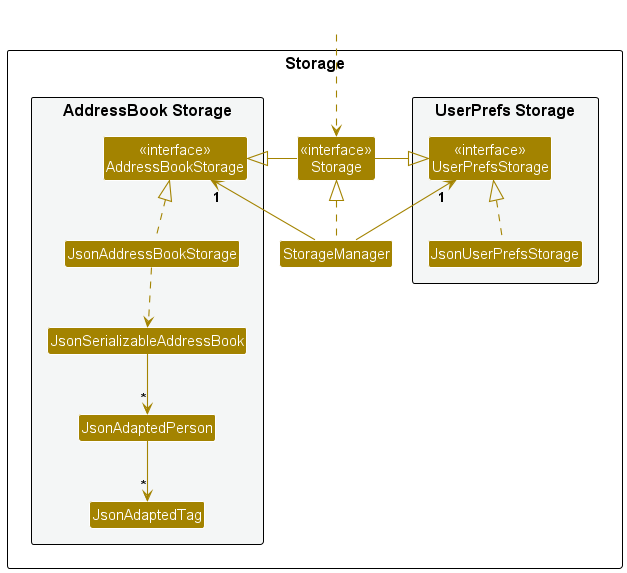

Storage component

API : Storage.java

The Storage component,

• can save both address book data and user preference data in JSON format, and read them back into corresponding objects.
• inherits from both AddressBookStorage and UserPrefStorage, which means it can be treated as either one (if only the functionality of only one is needed).
• depends on some classes in the Model component (because the Storage component’s job is to save/retrieve objects that belong to the Model)

Common classes

Classes used by multiple components are in the seedu.address.commons package.

Implementation

This section describes some noteworthy details on how certain features are implemented.

Undo/redo feature

Implementation

Undo/redo is implemented as a single-level snapshot mechanism in ModelManager, scoped to undoable application state.

The model stores up to three snapshots:

• pendingState: the pre-command snapshot captured before a mutating command executes
• undoState: the last committed snapshot that undo can restore
• redoState: the last undone snapshot that redo can restore

Each snapshot stores:

• a copy of the AddressBook
• a copy of the ShortcutMap
• the current Theme

The relevant model operations are:

• Model#saveState(): captures the current undoable state before a mutating command runs
• Model#commitState(): promotes the pending snapshot to the undo slot if the command actually changed state
• Model#discardState(): drops the pending snapshot when command execution fails
• Model#undoState(): restores the undo snapshot and saves the current state as the redo snapshot
• Model#redoState(): restores the redo snapshot and saves the current state as the undo snapshot

LogicManager#execute(...) coordinates this flow centrally:

1. Parse the command.
2. If Command#isStateMutating() is true, call Model#saveState().
3. Execute the command.
4. If execution succeeds, call Model#commitState().
5. If execution fails, call Model#discardState() so failed commands do not affect undo history.

add, edit, delete, clear, shortcut set, shortcut remove, and theme return true for isStateMutating(). Non-mutating commands such as list, find, plan, help, shortcut list, and note do not change undo/redo history. note is excluded because it does not persist any model state yet. undo and redo themselves also do not create new history entries.

Behavior

The implementation is intentionally limited to one level:

• After one successful undo, there is no further undo available until another successful undoable change happens.
• Redo is available after a successful undo until another successful undoable change happens.
• A new successful undoable command clears the redo snapshot.
• Commands that succeed without changing undoable state, such as clear on an already empty address book, do not consume the undo/redo slots.

Design considerations

Aspect: Snapshot granularity

• Alternative 1 (current choice): Save the whole undoable app state.
  • Pros: Small implementation surface, keeps command classes simple, and supports address book, shortcuts, and theme uniformly.
  • Cons: Uses more memory than command-specific inverse operations.
• Alternative 2: Each command stores enough information to reverse itself.
  • Pros: Potentially more efficient and more flexible for future multi-level history.
  • Cons: Higher implementation risk because every mutating command must define and maintain its own inverse logic.

Aspect: Where to trigger snapshotting

• Alternative 1 (current choice): Centralize snapshot orchestration in LogicManager.
  • Pros: Mutating commands only need to declare that they change undoable state; failed commands can be handled consistently in one place.
  • Cons: Adds a small amount of command metadata via isStateMutating().
• Alternative 2: Let each command decide when to save snapshots.
  • Pros: Commands can create a snapshot at very precise points in execution.
  • Cons: Easier to forget in new commands, and failure handling becomes duplicated across commands.

[Proposed] Data archiving

{Explain here how the data archiving feature will be implemented}

Substring Matching in Find Command

Implementation

The substring matching feature for the find command enables users to search for locations by matching any substring of their name, rather than requiring full word matches.

Design Overview:

The implementation involves three key components:

1. StringUtil - Low-level utility class that handles substring matching
   • Added new method: containsSubstringIgnoreCase(String sentence, String substring)
   • Performs case-insensitive substring matching using String.toLowerCase().contains()
   • Validates input (null checks, empty string checks)
2. NameContainsKeywordsPredicate - Filtering logic at the model layer
   • Located in seedu.address.model.location package (works with Location objects)
   • Modified test() method to use containsSubstringIgnoreCase() instead of containsWordIgnoreCase()
   • Maintains OR search logic: multiple keywords return matching locations if ANY keyword matches
   • Each keyword can now be a substring
3. FindCommand - Command execution layer
   • No changes needed; works seamlessly with the updated predicate
   • Reports filtered results to the UI through the model’s filtered location list

Sequence Flow:

User Input: "find Jo"
    ↓
FindCommandParser → Creates FindCommand with NameContainsKeywordsPredicate(["Jo"])
    ↓
FindCommand.execute() → Calls Model.updateFilteredLocationList(predicate)
    ↓
NameContainsKeywordsPredicate.test(location) → For each location, checks:
    - containsSubstringIgnoreCase("John Restaurant", "Jo") → true ✓
    - containsSubstringIgnoreCase("Jane Cafe", "Jo") → false ✗
    ↓
Result: "John Restaurant" is included in filtered list

Key Changes:

Design Considerations:

Aspect: Substring vs. Full Word Matching

• Alternative 1 (current choice): Substring matching (case-insensitive)
  • Pros: More flexible search; users can find locations with partial input (e.g., “Jo” matches “John’s Restaurant”, “Johan’s Cafe”, “Joust Arena”)
  • Pros: Simple to implement using String.contains()
  • Cons: May return more results than user expects (e.g., “e” matches many location names)
• Alternative 2: Full word matching only (previous implementation)
  • Pros: More precise results; reduces false positives
  • Cons: Less flexible; requires exact word matches
  • Cons: Inconvenient for users who don’t remember exact names
• Alternative 3: Regex-based matching
  • Pros: Maximum flexibility for complex patterns
  • Cons: Higher complexity; potential performance overhead
  • Cons: Poor user experience for non-technical users

Aspect: Search Scope

• Current choice: Search only in location names
  • Pros: Focused search; reduces noise
  • Cons: Cannot search by address, phone, email, tags, etc.
  • Future enhancement: Support for multi-field search (e.g., find by category tags, address, or distance)

Testing Strategy:

Comprehensive test coverage includes:

1. Unit Tests (StringUtilTest):
   • Substring at prefix, middle, suffix positions
   • Case-insensitive matching
   • Empty string and null validation
2. Component Tests (NameContainsKeywordsPredicateTest):
   • Single and multiple substring keywords
   • OR logic verification
   • Non-matching scenarios
3. Integration Tests (FindCommandTest, FindCommandParserTest):
   • End-to-end find command execution
   • Parser correctly handles substring keywords
   • Multiple locations matching different keywords
   • Test data includes typical locations (e.g., restaurants, attractions, hotels)

Multi-Date Support

Implementation

The multi-date support feature allows a Location to have multiple visit dates. This is useful for users who visit the same location multiple times.

Design Overview:

1. Location Model
   • Changed visitDate field from a single VisitDate object to a Set<VisitDate>.
   • Updated constructor and getters to handle the set of visit dates.
2. Predicate Logic
   • Updated VisitDateMatchesKeywordsPredicate to check if a given date is present in the Set<VisitDate> of a Location.
   • The search follows AND logic for multiple date prefixes: a location must have all the specified dates to match.
3. Parser Support
   • Updated AddCommandParser and EditCommandParser to handle multiple d/ prefixes.
   • EditCommand now supports d/ (overwrite all), d+/ (add specific dates), and d-/ (remove specific dates).
4. Storage Compatibility
   • Updated JsonAdaptedLocation to handle both the old single visitDate field and the new visitDates array in the JSON file.
   • This ensures that users can upgrade to the new version without losing their existing data.

Key Changes:

Documentation, logging, testing, configuration, dev-ops

• Documentation guide
• Testing guide
• Logging guide
• Configuration guide
• DevOps guide

Appendix: Requirements

Product scope

Target user profile:

• is a backpacker or traveller
• has a need to systematically catalogue multiple travel destinations and points of interest
• prefers lightweight desktop tools over visual-heavy travel apps
• can type fast and values high-efficiency, keyboard-driven workflows
• prefers typing to mouse interactions
• is comfortable using CLI applications for structured and searchable itinerary planning

Value proposition: It allows for much more efficient searching for destinations and planning routes between points, and a much more accessible and seamless UI for users to list, edit or delete the destinations (by contacts and address) they are interested in for overseas trips, leisure or social visits.

User stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

{More to be added}

Use cases

(For all use cases below, the System is AddressMe and the Actor is the user, unless specified otherwise)

Use case: Add a location

MSS

1. User inputs the details of a location.
2. User submits the details to the system.
3. System confirms the addition.
4. System shows the updated list. Use case ends.

Extensions

• 2a. The given details are invalid.

• 2a1. System shows an error message, and if it can handle gracefully with incomplete data, will show the details it managed to add. Use case resumes at step 3.

• 2b. The given location name is invalid.
• 2b1. System shows an error message and informs the user it is unable to add the entry. Use case ends.

Use case: Shorten/specify own commands to enhance usage speed

MSS

1. User requests to create a shortcut for an existing command.
2. System validates the shortcut and the referenced command.
3. System saves the shortcut.
4. System confirms that the shortcut has been created. Use case ends.

Extensions

2a. The alias violates validation constraints. (e.g. contains illegal characters, matches a reserved keyword, or conflicts with an existing alias) 2a1. System rejects the request and shows an appropriate error message. Use case ends.

2b. The referenced command word is invalid. (e.g. command does not exist or is not eligible for aliasing) 2b1. System shows an error message indicating that the command is invalid. Use case ends.

3a. Saving the shortcut fails due to a storage I/O error. 3a1. System shows an error message and does not persist the shortcut. Use case ends.

Use case: Edit a location

MSS

1. User requests to list locations using the list command.
2. System shows a list of locations.
3. User requests to edit a specific location in the list by providing its index and the new details to be updated.
4. System updates the location and shows a success message with the updated details. Use case ends.

Extensions

• 2a. The list is empty. Use case ends.
• 3a. The given index is invalid (out of range or non-numeric).

• 3a1. System shows an error message: “Invalid index. Please enter a valid location index.” Use case resumes at step 2.

• 3b. The provided email format is invalid.

• 3b1. System shows an error message regarding the invalid email. Use case resumes at step 2.

• 3c. The provided phone number format is invalid.

• 3c1. System shows an error message regarding the invalid phone number. Use case resumes at step 2.

• 3d. The edited details result in a duplicate entry (it matches an existing entry’s name + phone/email).
• 3d1. System rejects the edit, leaves the original record unchanged, and shows an error message. Use case resumes at step 2.

Use case: List all locations

MSS

1. User enters the list command.
2. System shows a list of locations. Use case ends.

Extensions

• 2a. The list is empty.
• 2a1. System informs the user the list is empty. Use case ends.

Use case: Save and exit

MSS

1. User enters the save/exit command.
2. System saves the data.
3. System closes the application. Use case ends.

Extensions

Use case: Delete one or more locations

MSS

1. User requests to list locations.
2. System shows a list of locations.
3. User requests to delete one or more locations.
4. System deletes all specified locations. Use case ends.

Extensions

• 2a. The list of locations is empty.

• 2a1. System informs the user that there are no locations to delete. Use case ends.

• 3a. At least one given index is invalid.
• 3a1. System shows an error message.

• 3a2. System lists the available locations again. Use case resumes at step 2.

• 3b. Duplicate indices are provided (e.g., delete 2 2).
• 3b1. System shows an error message.

• 3b2. System lists the available locations again. Use case resumes at step 2.

• 5a. An error occurs during deletion.

• 5a1. System informs the user that the deletion failed. Use case ends.

• *a. At any time, the user cancels the delete operation.
• *a1. System aborts the delete operation. Use case ends.

Use case: Undo the last change

MSS

1. User executes a successful command.
2. User wants to undo the command.
3. System restores the previous state.
4. System shows a success message. Use case ends.

Extensions

• 2a. There is no stored undo state.
• 2a1. System shows an error message. Use case ends.

Use case: Redo the last undone change

MSS

1. User successfully undoes an undoable change.
2. User wants to redo the change.
3. System reapplies the undone state.
4. System shows a success message. Use case ends.

Extensions

• 2a. There is no stored redo state.
• 2a1. System shows an error message. Use case ends.

{More to be added}

Non-Functional Requirements

1. Should work on any mainstream OS as long as it has Java 17 or above installed.
2. Should be able to hold up to 1000 locations without a noticeable sluggishness in performance for typical usage.
3. Should display a list of 1000 entries under 0.5 seconds when searching or using the “list” command.
4. A user with above average typing speed for regular English text (i.e. not code, not system admin commands) should be able to accomplish most of the tasks faster using commands than using the mouse.
5. Should work well for standard screen resolutions 1920x1080 and higher of 100% and 125% scales.
6. Should be usable for resolutions 1280x720 and higher and for screen scales 150%.

{More to be added}

Glossary

• Mainstream OS: Windows, macOS, and Linux.
• Location: A saved place in AddressMe together with its contact and address details.
• Tag: A label used to group similar saved locations.

Appendix: Instructions for manual testing

Given below are instructions to test the app manually.

Note: These instructions only provide a starting point for testers to work on; testers are expected to do more exploratory testing.

Launch and shutdown

1. Initial launch

   1. Download the jar file and copy into an empty folder

   2. Double-click the jar file Expected: Shows the GUI with a set of sample contacts. The window size may not be optimum.

2. Saving window preferences

   1. Resize the window to an optimum size. Move the window to a different location. Close the window.

   2. Re-launch the app by double-clicking the jar file.
      Expected: The most recent window size and location is retained.

3. { more test cases …​ }

Deleting a location

1. Deleting a location while all locations are being shown

   1. Prerequisites: List all locations using the list command. Multiple locations in the list.

   2. Test case: delete 1
      Expected: First contact is deleted from the list. Details of the deleted contact shown in the status message. Timestamp in the status bar is updated.

   3. Test case: delete 1 2
      Expected: First and second contacts are deleted from the list. Number of deleted locations shown in the status message. Timestamp in the status bar is updated.

   4. Test case: delete 0
      Expected: No location is deleted. Error details shown in the status message. Status bar remains the same.

   5. Other incorrect delete commands to try: delete, delete x, delete 1 1, ... (where x is larger than the list size)
      Expected: Similar to previous.

2. { more test cases …​ }

Saving data

1. Dealing with missing/corrupted data files

   1. {explain how to simulate a missing/corrupted file, and the expected behavior}

2. { more test cases …​ }

Undoing and redoing changes

1. Undo after a successful modifying command

   1. Prerequisites: Start with at least one location in the list.

   2. Test case: delete 1 followed by undo
      Expected: The deleted location reappears. A success message for undo is shown.

   3. Test case: clear followed by undo
      Expected: All previously saved locations are restored.

   4. Test case: theme dark followed by undo
      Expected: The previous theme is restored.

   5. Test case: shortcut set a add followed by undo
      Expected: The shortcut a -> add is removed.

2. Undo when no undo state exists

   1. Prerequisites: Fresh app start with no prior successful undoable command.

   2. Test case: undo
      Expected: No data changes. An error message is shown.

3. Redo after undo

   1. Prerequisites: Execute add n/Test Place, then undo.

   2. Test case: redo
      Expected: Test Place is added back. A success message for redo is shown.

   3. Test case: redo again
      Expected: No data changes. An error message is shown because only one redo level is supported.

   4. Test case: theme dark, undo, redo
      Expected: The theme becomes dark again.
